Edge Connectors

​

Overview

The Rootly Edge Connector is a lightweight agent that enables secure, bidirectional integration between Rootly and internal or on-premises systems that cannot accept inbound internet connections. It uses an outbound-only polling model to listen for events from Rootly and execute local actions in response.

​

Key Benefits

• Enhanced Security: No inbound firewall rules required - only outbound HTTPS connections
• Flexibility: Execute any script or automation in response to Rootly events
• Auditability: Full Git-based configuration and comprehensive execution logs
• Reliability: Event queueing with retry logic ensures no missed actions
• Seamless Integration: Bridge cloud-based Rootly with on-premises systems

​

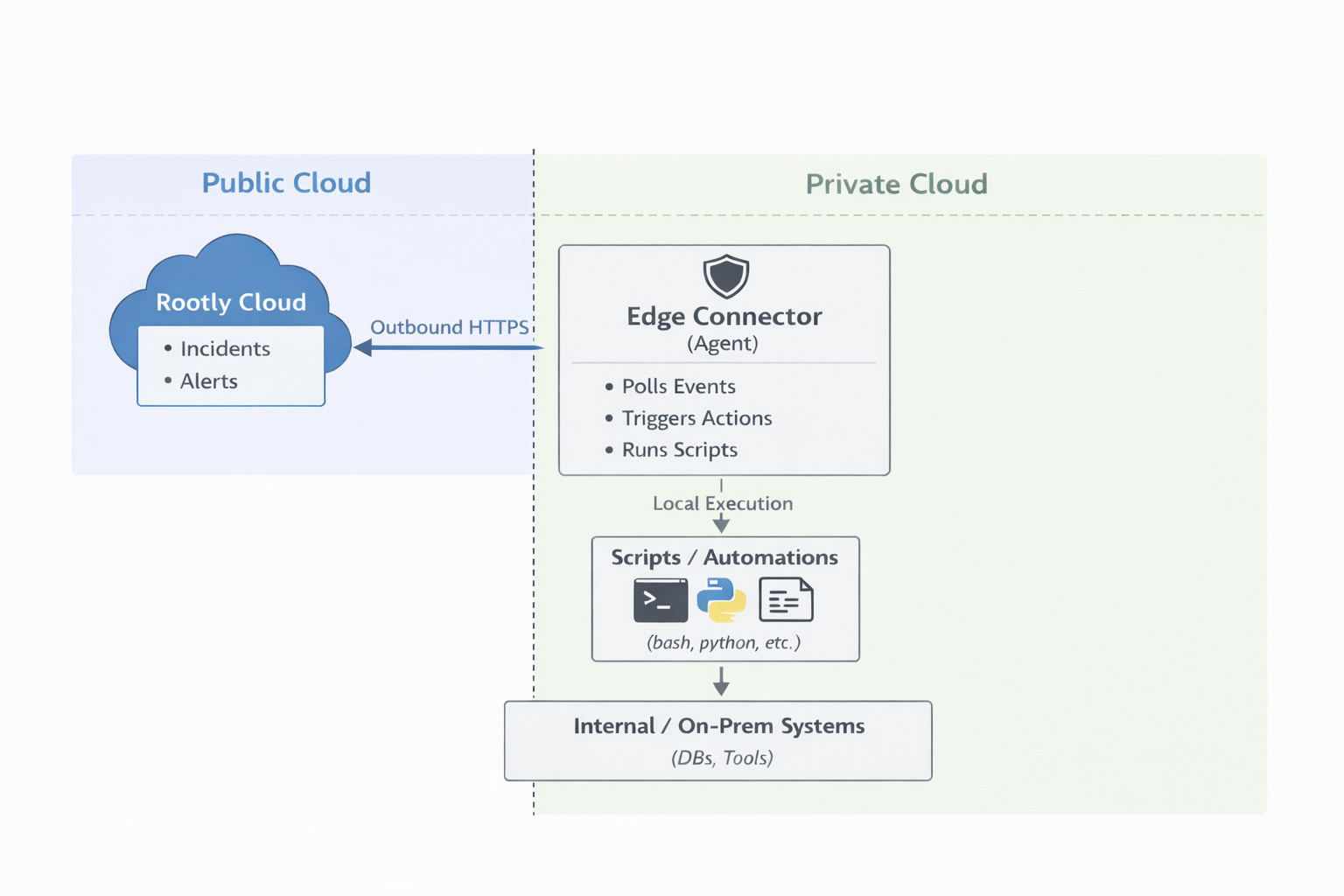

How It Works

​

Communication Flow

1. Polling: The Edge Connector polls Rootly’s API at regular intervals for new events
2. Event Processing: When events are received, the connector maps them to configured actions
3. Execution: Whitelisted scripts are executed with event context as parameters
4. Reporting: Results and logs are sent back to Rootly for visibility and audit

​

Security Model

​

Why Outbound-Only is More Secure

Traditional Webhook Approach (Inbound):

• Requires exposing an endpoint to the internet
• Must configure and maintain TLS termination
• Attack surface for scanning, probing, and DDoS
• Firewall changes and security reviews required

Edge Connector Approach (Outbound):

• Only outbound HTTPS (same as normal web browsing)
• No exposed endpoints for attackers to discover
• No firewall changes needed
• Cannot be directly targeted from the internet

​

Additional Security Features

• API Key Scoping: Create Edge Connector-specific API keys with minimal permissions
• Script Whitelisting: Only approved, version-controlled scripts can execute
• Team-based Authorization: Map Rootly teams to allowed local actions
• Audit Trail: Every action logged with full context (who, what, when)
• Network Isolation: Run the connector on a dedicated, isolated host

​

Getting Started

​

Prerequisites

• Rootly team with Edge Connector feature enabled
• Ability to run a service in your internal network
• API key with Edge Connector permissions

​

Request Access

To request access:

1. Navigate to Settings → Edge Connectors in Rootly
2. Click Request Access
3. Your team administrators will be notified
4. Contact [email protected] for feature enablement

​

Setup Overview

1. Create an Edge Connector in Rootly
   • Navigate to Settings → Edge Connectors
   • Click “Create Edge Connector”
   • Configure name and event subscriptions
   • Generate an API key
2. Install the Edge Connector Agent
   • See the Installation & Deployment guide for detailed setup instructions
3. Configure Actions
   • See the Action Configuration guide to define your automations
4. Monitor and Maintain
   • View connector status in Rootly dashboard
   • Review execution logs
   • Update scripts as needed

​

Action Types

Edge Connector actions fall into two categories:

​

Automatic Actions

These run automatically in response to system events, without user interaction. Configured in the on: section of actions.yml. Examples: Auto-restart services when alerts fire, send notifications when incidents are created, collect diagnostics automatically.

​

Callable Actions

These are triggered manually by users from the Rootly UI with interactive buttons and forms. Configured in the callable: section of actions.yml. Examples: Manual service restart, deploy hotfix, scale infrastructure, clear cache on demand.

​

Supported Event Types

Edge Connectors support two categories of events:

​

Automatic Event Types

These events are triggered automatically by system events and can be subscribed to when configuring your Edge Connector: Alert Events:

• alert.created - New alert from monitoring system
• alert.updated - Alert properties changed
• alert.acknowledged - Alert acknowledged by a user
• alert.resolved - Alert marked as resolved
• alert.deleted - Alert removed

Incident Events:

• incident.created - New incident started
• incident.updated - Incident properties changed
• incident.in_triage - Incident moved to triage status
• incident.mitigated - Incident mitigated
• incident.resolved - Incident marked resolved
• incident.cancelled - Incident cancelled
• incident.deleted - Incident deleted

​

Manual Trigger Event Types

These events are triggered by user actions and are configured per action:

• action.triggered - Standalone action triggered by a user
• alert.action_triggered - Action triggered from an alert context
• incident.action_triggered - Action triggered from an incident context

​

Use Cases

​

Automated Remediation

Automatically restart services or run diagnostic scripts when critical alerts are detected. Perfect for known issues that have established remediation procedures.

​

Internal System Integration

Create tickets in internal ITSM systems that aren’t accessible from the internet. Bridge Rootly with on-premises Jira, ServiceNow, or custom ticketing systems.

​

Hybrid Cloud Orchestration

Run Ansible playbooks or other automation tools in response to incident lifecycle events. Trigger infrastructure changes, scaling operations, or deployment rollbacks.

​

Diagnostic Collection

Automatically collect logs, metrics, and diagnostics when incidents occur. Gather context automatically to speed up incident investigation.

​

Managing Edge Connectors

​

Viewing Connector Status

In the Rootly dashboard, you can monitor:

• Online Status: Whether the connector is actively polling
• Last Poll Time: When the connector last checked for events
• Events Pending: Number of events waiting to be processed
• Recent Executions: Logs of recently executed actions

​

API Key Management

Each Edge Connector requires an API key:

1. Navigate to Settings → API Keys
2. Create a new key with type Edge Connector
3. Associate it with your Edge Connector
4. Store the key securely on your connector host

​

Documentation

• Installation & Deployment - Install and configure the Edge Connector in your environment
• Action Configuration - Define script and HTTP actions to automate responses
• Template Syntax - Use Liquid templates for dynamic values in actions
• Event Examples - Reference for event payload structures and fields

​

Best Practices

Security:

• Run the Edge Connector on a dedicated, isolated host
• Store secrets in environment variables, never in configuration files
• Version control all scripts and review through pull requests
• Rotate API keys periodically

Reliability:

• Configure appropriate polling intervals (typically 10-30 seconds)
• Set reasonable script timeouts based on expected execution time
• Implement retry logic in your scripts for transient failures
• Monitor connector health and set up downtime alerts

Configuration:

• Use descriptive names for connectors and actions
• Document script requirements and dependencies
• Test actions thoroughly before production deployment
• Keep the connector software updated

For detailed troubleshooting, see the Installation & Deployment guide.
