Listen for Jira Events

In order to respond to Jira events, you’ll need to set up a webhook in Jira so your Rootly platform can receive the events.

​

Workflow Configurations

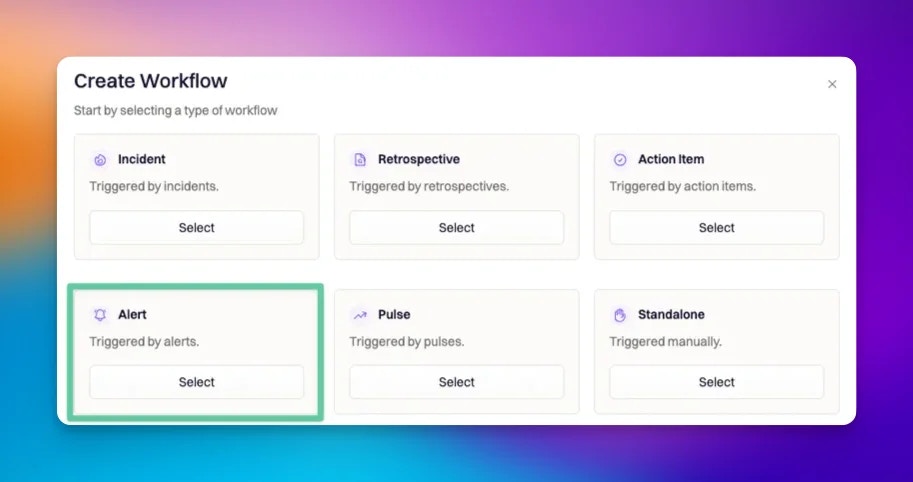

Select workflow type. Since Jira events will be created into Rootly as alerts, we will need to use an Alert workflow type.

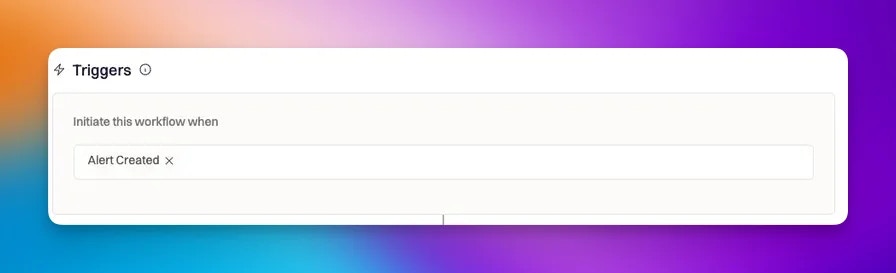

Select workflow triggers. Alert Created will be the only option to select here. This means the workflow will initialize whenever a new alert is created in Rootly.

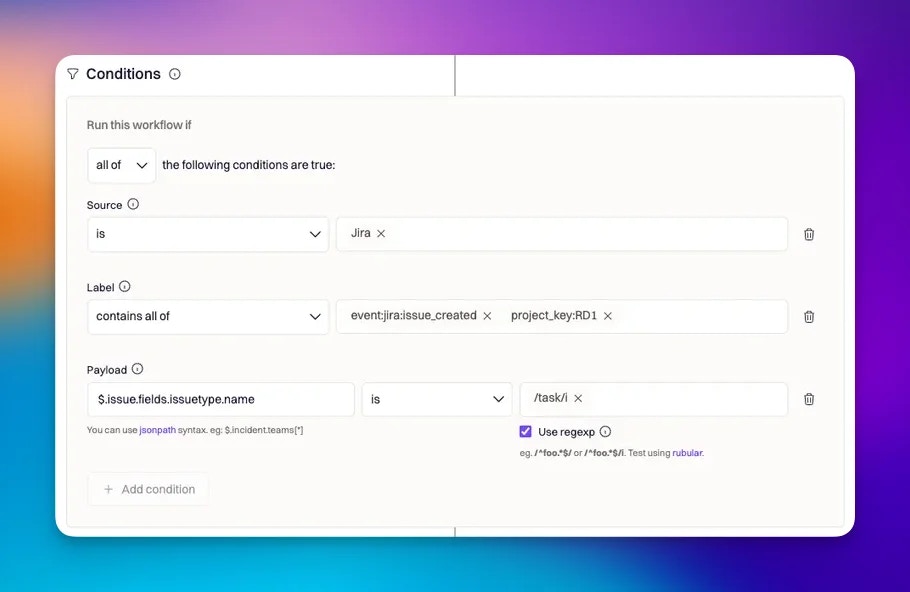

Configure run conditions. Set up your workflow to only run if…

• The alert source is from Jira
• The alert labels:
  • Option 1: contains all of the following labels (this is if you want to respond to a new Jira issue being created)
    • event:jira:issue_created
    • project_key:RD1 (this label is optional - only include this if you want to respond to issues from a specific Jira project)
  • Option 2: contains all of the following labels (this is if you want to respond to an existing Jira issue being updated)
    • event:jira:issue_updated
    • project_key:RD1 (this label is optional - only include this if you want to respond to issues from a specific Jira project)
• The alert payload has the $.object.specific_field equals to /specific_value/i
  • JSON path syntax is used to filter for a specific field from the alert payload (e.g. $.issue.fields.issuetype.name). You can preview your syntax on JSON Path Explorer.
  • Ruby regular expression can be used to specify what value to match to. You can test your regexp on this Rubular tool.

Currently, only a single payload field can be filtered on. So, try to configure your run conditions to filter by Label as much as you can before resorting to filtering by Payload.

We will be exploring the possibility of supporting filtering by multiple payload fields in the future.

​

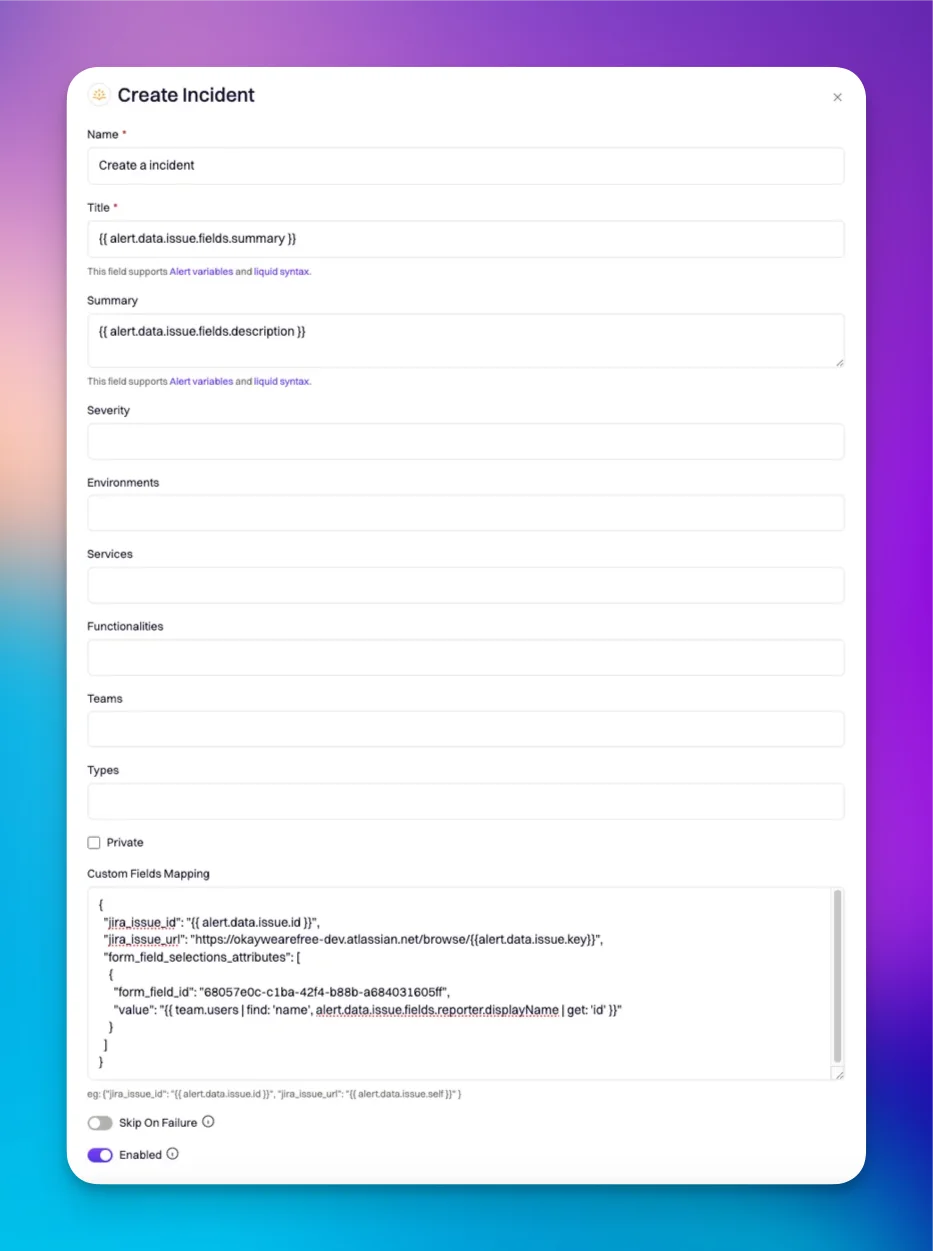

Create Incident

The Create Incident action is used to declare an incident in Rootly. Since this action will be referencing alert data, the dynamic fields will be {{ alert.properties }}.

Rootly does NOT automatically link alerts to the incident. You’ll need to include the following custom mapping in order to link the Jira ticket to the newly declared Rootly incident.

{
  "jira_issue_id": "{{ alert.data.issue.id }}",
  "jira_issue_url": "https://your-jira-instance.atlassian.net/browse/{{alert.data.issue.key}}"
}

​

Update Incident

The Update Incident action is used to update an existing incident in Rootly. Ensure that you set Attribute to Match field to jira_issue_id and Attribute Value to {{ alert.data.issue.id }}. These fields are required for Rootly to know which incident to update.

​

Custom Fields Mapping

If you require more dynamic mapping of Rootly incident properties, you can input the following syntax into the Custom Fields Mapping field.

Dynamically set Rootly incident severity.

{
  {% if alert.data.issue.fields.priority.name == 'Highest' %}
    "severity_id": "SEV0"
  {% elsif alert.data.issue.fields.priority.name == 'High' %}
    "severity_id": "SEV1"
  {% elsif alert.data.issue.fields.priority.name == 'Medium' %}
    "severity_id": "SEV2"
  {% else %}
    "severity_id": "SEV3"
  {% endif %}
}

Dynamically set Rootly incident status.

{
  {% if alert.data.issue.fields.status.name == '<alert_status>' %}
    "status":"open"
  {% elsif alert.data.issue.fields.status.name == '<alert_status>' %}
    "status":"mitigated"
  {% elsif alert.data.issue.fields.status.name == '<alert_status>' %}
    "status":"resolved"
  {% else %}
    "status":"cancelled"
  {% endif %}
}

Set custom field for Rootly incident.

//Setting Rootly text to hard-coded value
{
  "form_field_selections_attributes":[
    {
      "form_field_id":"e041106e-cb9a-404b-8ae1-51a1d6213a68",
      "value": "Nifty Gateway"
    }
  ]
}

//Setting Rootly text to value from the alert payload
{
  "form_field_selections_attributes":[
    {
      "form_field_id":"e041106e-cb9a-404b-8ae1-51a1d6213a68",
       "value":"{{alert.data.organization.name}}"
    }
  ]
}


//Setting Rootly single select or multi-select field
{
  "form_field_selections_attributes":[
    {
      "form_field_id":"e041106e-cb9a-404b-8ae1-51a1d6213a68",
       "selected_option_ids":["option_id"]
    }
  ]
}

​

Debugging

Below are common errors you might run into during your configuration process. To view the error response, you can locate the specific workflow you’re trying to debug, select … > View Runs > View.

​

Support

If you need help or more information about this integration, please contact support@rootly.com or start a chat by navigating to Help > Chat with Us.
